Quality, efficiency, sustainability

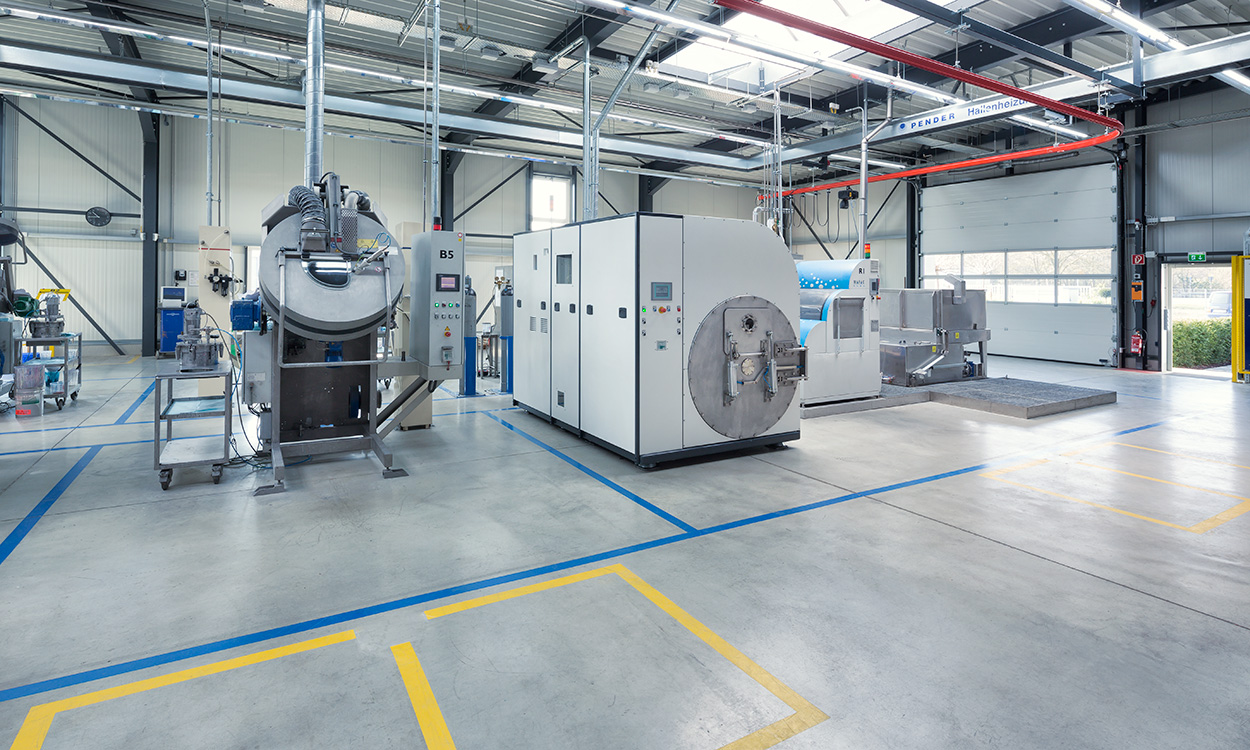

A plasma cleaning system from aixACCT mechatronics lets you further improve the quality of your products in an efficient and environmentally friendly process. When it comes to surface treatment processes for bulk goods like painting and coating, the products’ surface tension following ultrafine cleaning can have a major influence on the end result. The level of surface tension achieved is therefore the rigmark for the quality of the ultrafine cleaning.
When subjected to a wetting test, bulk goods that have been processed in an aixACCT mechatronics plasma cleaning system achieve a surface tension of up to 60 mN/m, which corresponds to complete wetting. Our plasma cleaning systems therefore create the best conditions for the perfect end product.
Further benefits of these systems include:
- An environmentally friendly alternative to galvanic cleaning
- Low CO2 emissions
- High throughput of 100 kg/10 min
- 24/7 operation possible (3 shifts)
- Compact design
Thanks to our proven automation expertise, we can integrate your system seamlessly into your process.
Overview of manual and fully automatic systems
-
Container type Standard wire basket Container size Approx. 650 x 470 x 300 mm No. of containers 3 Total bulk solids weight 45 kg Total bulk solids volume approx. 120 l Feed front Feed type manual Process integration interface none Typical application Sensitive elastomer parts Typical throughput 80 kg/h
200 l/hSurface tension with typical cycle time > 55 mN/m Power approx. 20 kW Process gas Oxygen (nitrogen, argon) Main chamber pump(s) Nominal working pressure 0,2 mbar Pumping time to dry empty approx. 180 s Floor area Approx. 2.40 x 2.90 m Container type
Standard wire basket
Container size
Approx. 650 x 470 x 300 mm
No. of containers
3
Total bulk solids weight
45 kg
Total bulk solids volume approx.
120 l
Feed
front
Feed type
manual
Process integration interface
none
Typical application
Sensitive elastomer parts
Typical throughput
80 kg/h
200 l/h
Surface tension with typical cycle time
> 55 mN/m
Power approx.
20 kW
Process gas
Oxygen (nitrogen, argon)
Main chamber pump(s)
Nominal working pressure
0,2 mbar
Pumping time to dry empty approx.
180 s
Floor area
Approx. 2.40 x 2.90 m
-
Container type Special drum Container size DM 900x650 mm No. of containers 1 Total bulk solids weight Up to 250 kg Total bulk solids volume approx. 90 l Feed top Feed type Crane, fully automatic, process integrated Process integration interface Profinet Typical application Robust metal or plastic parts Typical throughput 500 kg/h
650 l/hSurface tension with typical cycle time > 55 mN/m Power approx. 35 kW Process gas
Oxygen (nitrogen, argon) Main chamber pump(s) Pumping time to dry empty approx. 150 s Floor area 4.00 x 3.10 m Container type
Special drum
Container size
DM 900x650 mm
No. of containers
1
Total bulk solids weight
Up to 250 kg
Total bulk solids volume approx.
90 l
Feed
top
Feed type
Crane, fully automatic, process integrated
Process integration interface
Profinet
Typical application
Robust metal or plastic parts
Typical throughput
500 kg/h
650 l/h
Surface tension with typical cycle time
> 55 mN/m
Power approx.
35 kW
Process gas
Oxygen (nitrogen, argon)
Main chamber pump(s)
Pumping time to dry empty approx.
150 s
Floor area
4.00 x 3.10 m
